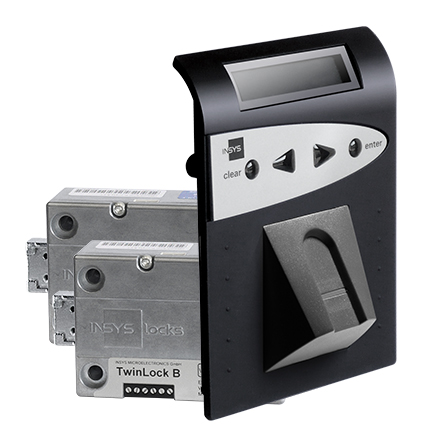

Fully automatic electric motor safe lock.
Perfection of functionality and usability. The Insys TwinLock Business electronic safe lock system is on of the most advanced solutions in the world. This safe lock complies to the highest requirements concerning secuirty level, reliability and scope of functions.
This network-ready safe lock system is great for use with value storage units from simple burgalry safes to strongrooms of the highest burglary grade. Let it be about using a CIT company, the presence of users with various authorizations, or even frequently shifting counter personnel, the TwiLock Business series offers a suitable solution.
Thanks to redundant (duplicated) electronics and mechanics, if an element is malfunctioning, the system is able to continue operation, reliability and very long life expectancy is guaranteed.
Recommended for initial setup and retrofitting as well.
Without AHICO certificate.
EN 1300 "B/C/D", ECB.S "B/C/D" and VdS "2/3/4" grade burglary certificate.
1, 2 or 3 lock operation.
Opening with code and/or chip card, fingerprint. Manual rotation of the input unit is not needed.
Maximum 10 biometric codes (fingerprints) per user (1000 in total).
1 manager + 1 master + 99 operator user codes.
Up to 100 TwinCard Code Access chip cards (physical code - not included).
Adjustable bolt throw 8,5-15,5 mm, bolt with 2x M4 threaded holes.
Right or left hand (upside down) safe lock.
A wide range of programming options.
Manipulation blocking, dual code (4-eyes ), time delay, automatic locking, quick unlocking code, connection to alarm system, duress alarm, duress time delay, quick locking, error diagnostics, error display, lock status, external release / blocking.
Plastic, black FlatControl input unit (VdS 2/3).
Silicon rubber keypad with black keys.
2-row, contrasted LC display.
Selectable menu language (HU, D, GB).
Chip card and fingerprint reader.
Mains adaptor, power supply included.
Electronic emergency opening, external power supply through the input unit.
Twin XT, VdS C certified blocking unit included.
TwinConnect expansion module included.
Additional features available with TwinComm programming and downloading software (not included):
Event log (3000 events), quick unlocking code, parallel code (2 lock system), extended 4-eyes, user groups, user matrix, time programs, blocking periods, part-blocking periods, automatic summer/winter time changeover (DLST), code aging, lock open monitoring, low voltage monitoring, error diagnostics, error display, automatic or manual locking, tamper monitoring, freely selectable alarm digit, trivial code check, forced sequence (multi lock system).
Available TwinCard Access chip cards for opening (not included).
Available VdS C certified TwinAlarm module (not included) for control of an IAS (arming/disarming).
Additional features available with TwinIP network module (not included):
Network connected (IP) use
Available TwinNet network software (not included) for remote management.
Prepared for mounting, standard mounting holes (4). Fastening screws (4x M6) included.
Admissible mounting positions: horizontal (bolt left), vertical (bolt up), vertical (bolt down), horizontal (bolt right).
Silver colour safe lock.
